DCS-700 DIGITAL CAMERA
![Untitled-2.jpg](https://static.wixstatic.com/media/6ce74b_1fe94b1aea5647f7b9950eb5fbc798eb~mv2.jpg/v1/fill/w_474,h_466,al_c,q_80,usm_0.66_1.00_0.01,enc_auto/Untitled-2.jpg)
![img_004 (1).jpg](https://static.wixstatic.com/media/6ce74b_66fb6ee6300f43e9911b5fd1969f5a95~mv2.jpg/v1/fill/w_290,h_214,al_c,q_80,usm_0.66_1.00_0.01,enc_auto/img_004%20(1).jpg)
Manufacturer: REXXAM
Product code: IMDCS700

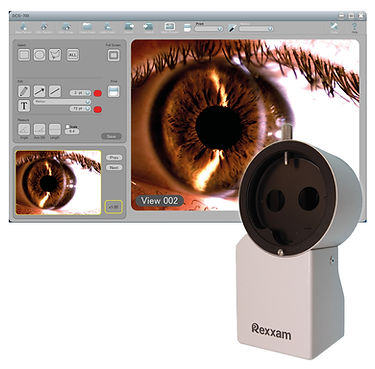

DCS-700 is a compact digital camera system with built-in beam-splitter, which fits perfectly to a large range of Rexxam Slit Lamp models.
The DCS-700 digital camera system uses Windows based imaging software and guarantees SuperSpeed USB 3.0 data transfer to the users PC. The intuitive user interface makes image capture simple and fast.
5 megapixel CMOS colour 0.5" sensor
High resolution 2,560 x 1,920 pixels
Clear and real time live image with high frame rate
USB 3.0 SuperSpeed data transfer
User friendly image filing database software
Multi image or full screen display
Patient database
DCS-700 comes with a database function that allows the user to save and organise patient records, import/export data and to unite exam function, group creation function and more. The Quick Exam function enables users to take still images or videos without the need to create a new patient registration. This data can later be merged using the Unite Exam function.
Still images and video recording
Take still images or video recording with just one touch on the control icon. The RS-5000/500 Rexxam slit lamps also support automatic right/ left eye detection. Multiple-shot image capturing is possible by one touch of the slit lamp joystick button.
![DSC-700 Hero.jpg](https://static.wixstatic.com/media/6ce74b_1e798eaefc61402f8e315daf04742d29~mv2.jpg/v1/fill/w_491,h_164,al_c,q_80,usm_0.66_1.00_0.01,enc_auto/6ce74b_1e798eaefc61402f8e315daf04742d29~mv2.jpg)
Camera parameter and exposure setting
The DCS-700 parameter screen comes with intuitive pre-set functions for quick observation of fluorescein or the crystalline lens. Users can also customise other buttons for specific applications. Exposure, black level, gamma or RGB are either 'Auto Select' or set manually.
Image editing
The DCS-700 software image editing screen enables the user to perform the following functions:
Brightness and contrast
AOI (area of interest)
Annotation (text)
Draw (free, arrow, line)
Measurement (length and angle)
Specifications
Software system requirements
